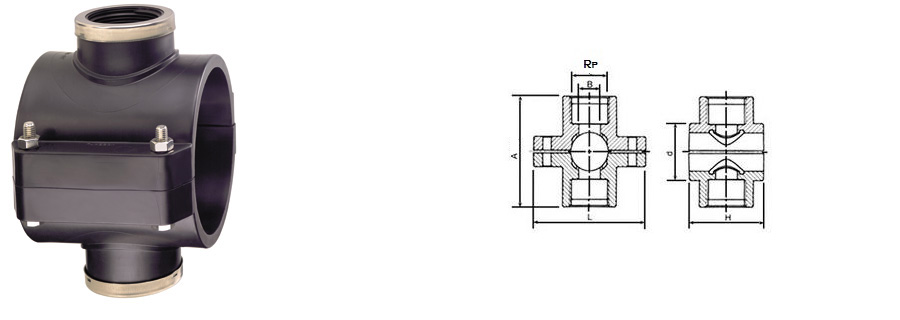

TABELLA DIMENSIONI
| Prodotto | dxRpxRp | L | A | H | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 161760020005 | 20x½" x½" | 70 | 66 | 45 | 12,5 | 0,073 |  |
| 161760025005 | 25x½" x½" | 75 | 71 | 50 | 12,5 | 0,081 | |
| 161760025007 | 25x¾" x¾" | 75 | 73 | 50 | 12,5 | 0,086 | |
| 161760032005 | 32x½" x½" | 92 | 80 | 60 | 12,5 | 0,144 | |
| 161760032007 | 32x¾" x ¾" | 92 | 82 | 60 | 12,5 | 0,148 | |
| 161760032010 | 32x1" x1" | 92 | 84 | 60 | 12,5 | 0,163 | |
| 161760040005 | 40x½" x½" | 92 | 89 | 60 | 12,5 | 0,153 | |
| 161760040007 | 40x¾" x¾" | 92 | 91 | 60 | 12,5 | 0,157 | |
| 161760040010 | 40x1" x1" | 92 | 98 | 60 | 12,5 | 0,174 | |
| 161760050005 | 50x½" x½" | 106 | 102 | 73 | 12,5 | 0,193 | |
| 161760050007 | 50x¾" x¾" | 106 | 104 | 73 | 12,5 | 0,196 | |
| 161760050010 | 50x1" x1" | 106 | 109 | 73 | 12,5 | 0,210 | |
| 161760050013 | 50x1¼" x1¼" | 106 | 117 | 73 | 12,5 | 0,260 | |
| 161760063005 | 63x½" x½" | 116 | 116 | 84 | 12,5 | 0,293 | |
| 161760063007 | 63x¾" x¾" | 116 | 116 | 84 | 12,5 | 0,296 | |
| 161760063010 | 63x1" x1" | 116 | 123 | 84 | 12,5 | 0,310 | |
| 161760063013 | 63x1¼" x1¼" | 116 | 132 | 84 | 12,5 | 0,354 | |
| 161760063015 | 63x1½" x1½" | 116 | 133 | 84 | 12,5 | 0,382 | |
| 161760075005 | 75x½" x½" | 122 | 128 | 98 | 12,5 | 0,382 | |
| 161760075007 | 75x¾" x¾" | 122 | 130 | 98 | 12,5 | 0,382 | |
| 161760075010 | 75x1" x1" | 122 | 135 | 98 | 10 | 0,397 | |
| 161760075013 | 75x1¼" x1¼" | 122 | 144 | 98 | 10 | 0,438 | |
| 161760075015 | 75x1½" x1½" | 122 | 145 | 98 | 10 | 0,465 | |
| 161760075020 | 75x2" x2" | 122 | 155 | 98 | 10 | 0,513 | |
| 161760090005 | 90x½" x½" | 141 | 143 | 105 | 12,5 | 0,467 | |
| 161760090007 | 90x¾" x¾" | 141 | 146 | 105 | 10 | 0,468 | |
| 161760090010 | 90x1" x1" | 141 | 151 | 105 | 10 | 0,482 | |
| 161760090013 | 90x1¼" x1¼" | 141 | 160 | 105 | 10 | 0,526 | |
| 161760090015 | 90x1½" x1½" | 141 | 141 | 105 | 10 | 0,546 | |
| 161760090020 | 90x2" x2" | 141 | 172 | 105 | 10 | 0,585 | |
| 161760110005 | 110x½" x½" | 165 | 166 | 116 | 12,5 | 0,575 | |
| 161760110007 | 110x¾" x¾" | 165 | 168 | 116 | 12,5 | 0,577 | |
| 161760110010 | 110x1" x1" | 165 | 173 | 116 | 10 | 0,586 | |
| 161760110013 | 110x1¼" x1¼" | 165 | 182 | 116 | 10 | 0,628 | |
| 161760110015 | 110x1½" x1½" | 165 | 187 | 116 | 10 | 0,653 | |
| 161760110020 | 110x2" x2" | 165 | 196 | 116 | 10 | 0,685 | |
| 161760125007 | 125x¾" x¾" | 184 | 182 | 124 | 12,5 | 0,814 | |
| 161760125010 | 125x1" x1" | 184 | 187 | 124 | 10 | 0,814 | |
| 161760125013 | 125x1¼" x1¼" | 184 | 196 | 124 | 10 | 0,814 | |
| 161760125015 | 125x1½" x1½" | 184 | 198 | 124 | 10 | 0,834 | |
| 161760125020 | 125x2" x2" | 184 | 208 | 124 | 10 | 0,761 | |
| 161760140010 | 140x1" x1" | 201 | 202 | 136 | 10 | 0,948 | |
| 161760140013 | 140x1¼" x 1¼" | 201 | 212 | 136 | 10 | 0,947 | |
| 161760140020 | 140x2" x2" | 201 | 223 | 136 | 10 | 1,001 | |
| 161760160010 | 160x1" x1" | 223 | 223 | 145 | 10 | 1,055 | |
| 161760160013 | 160x1¼" x1¼" | 223 | 233 | 145 | 10 | 1,098 | |
| 161760160015 | 160x1½" x1½" | 223 | 235 | 145 | 10 | 1,119 | |
| 161760160020 | 160x2" x2" | 223 | 245 | 145 | 10 | 1,137 | |
| 161760180010 | 180x1" x1" | 245 | 243 | 154 | 10 | 1,310 | |
| 161760180013 | 180x1¼" x1¼" | 245 | 253 | 154 | 10 | 1,335 | |
| 161760180015 | 180x1½" x1½" | 245 | 255 | 154 | 10 | 1,247 | |
| 161760180020 | 180x2" x2" | 245 | 265 | 154 | 10 | 1,368 | |
