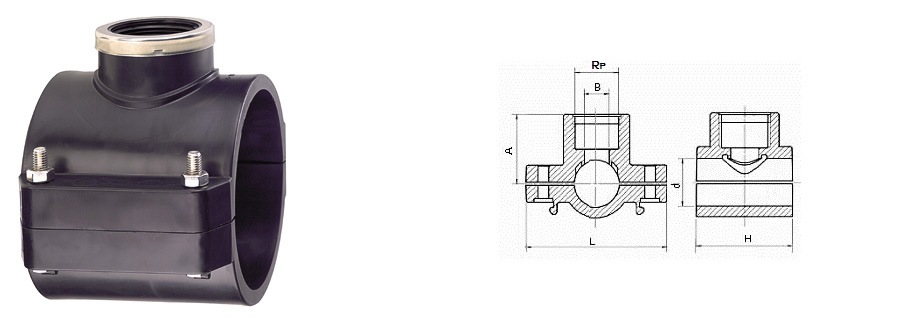

TABELLA DIMENSIONI
| Prodotto | dxRp | L | A | H | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 160760020005 | 20x½" | 70 | 33 | 45 | 12,5 | 0,062 |  |
| 160760025005 | 25x½" | 75 | 36 | 50 | 12,5 | 0,070 | |
| 160760025007 | 25x¾" | 75 | 37 | 50 | 12,5 | 0,072 | |
| 160760032005 | 32x½" | 92 | 40 | 60 | 12,5 | 0,133 | |
| 160760032007 | 32x¾" | 92 | 41 | 60 | 12,5 | 0,134 | |
| 160760032010 | 32x1" | 92 | 42 | 60 | 12,5 | 0,142 | |
| 160760040005 | 40x½" | 92 | 45 | 60 | 12,5 | 0,140 | |
| 160760040007 | 40x¾" | 92 | 46 | 60 | 12,5 | 0,142 | |
| 160760040010 | 40x1" | 92 | 49 | 60 | 12,5 | 0,150 | |
| 160760050005 | 50x½" | 106 | 51 | 73 | 12,5 | 0,178 | |
| 160760050007 | 50x¾" | 106 | 52 | 73 | 12,5 | 0,179 | |
| 160760050010 | 50x1" | 106 | 54 | 73 | 12,5 | 0,186 | |
| 160760050013 | 50x1¼" | 106 | 58 | 73 | 12,5 | 0,212 | |
| 160760063005 | 63x½" | 116 | 58 | 84 | 12,5 | 0,277 | |
| 160760063007 | 63x¾" | 116 | 59 | 84 | 12,5 | 0,279 | |
| 160760063010 | 63x1" | 116 | 61 | 84 | 12,5 | 0,285 | |
| 160760063013 | 63x1¼" | 116 | 66 | 84 | 12,5 | 0,308 | |
| 160760063015 | 63x1½" | 116 | 67 | 84 | 12,5 | 0,322 | |
| 160760075005 | 75x½" | 122 | 64 | 98 | 12,5 | 0,369 | |
| 160760075007 | 75x¾" | 122 | 65 | 98 | 12,5 | 0,369 | |
| 160760075010 | 75x1" | 122 | 67 | 98 | 10 | 0,376 | |
| 160760075013 | 75x1¼" | 122 | 72 | 98 | 10 | 0,397 | |
| 160760075015 | 75x1½" | 122 | 73 | 98 | 10 | 0,410 | |
| 160760075020 | 75x2" | 122 | 78 | 98 | 10 | 0,432 | |
| 160760090005 | 90x½" | 141 | 72 | 105 | 12,5 | 0,453 | |
| 160760090007 | 90x¾" | 141 | 73 | 105 | 12,5 | 0,454 | |
| 160760090010 | 90x1" | 141 | 75 | 105 | 10 | 0,460 | |
| 160760090013 | 90x1¼" | 141 | 80 | 105 | 10 | 0,482 | |
| 160760090015 | 90x1½" | 141 | 81 | 105 | 10 | 0,493 | |
| 160760090020 | 90x2" | 141 | 86 | 105 | 10 | 0,511 | |
| 160760110005 | 110x½" | 165 | 83 | 116 | 12,5 | 0,561 | |
| 160760110007 | 110x¾" | 165 | 84 | 116 | 12,5 | 0,561 | |
| 160760110010 | 110x1" | 165 | 87 | 116 | 10 | 0,566 | |
| 160760110013 | 110x1¼" | 165 | 91 | 116 | 10 | 0,587 | |
| 160760110015 | 110x1½" | 165 | 92 | 116 | 10 | 0,600 | |
| 160760110020 | 110x2" | 165 | 97 | 116 | 10 | 0,615 | |
| 160760125007 | 125x¾" | 184 | 91 | 124 | 12,5 | 0,749 | |
| 160760125010 | 125x1" | 184 | 94 | 124 | 10 | 0,754 | |
| 160760125013 | 125x1¼" | 184 | 98 | 124 | 10 | 0,778 | |
| 160760125015 | 125x1½" | 184 | 99 | 124 | 10 | 0,781 | |
| 160760125020 | 125x2" | 184 | 104 | 124 | 10 | 0,796 | |
| 160760140010 | 140x1" | 201 | 101 | 136 | 10 | 0,892 | |
| 160760140013 | 140x1¼" | 201 | 106 | 136 | 10 | 0,912 | |
| 160760140015 | 140x1½" | 201 | 107 | 136 | 10 | 0,922 | |
| 160760140020 | 140x2" | 201 | 112 | 136 | 10 | 0,938 | |
| 160760160010 | 160x1" | 223 | 112 | 145 | 10 | 1,039 | |
| 160760160013 | 160x1¼" | 223 | 117 | 145 | 10 | 1,061 | |
| 160760160015 | 160x1½" | 223 | 118 | 145 | 10 | 1,071 | |
| 160760160020 | 160x2" | 223 | 123 | 145 | 10 | 1,080 | |
| 160760180010 | 180x1" | 245 | 122 | 154 | 10 | 1,300 | |
| 160760180020 | 180x2" | 245 | 133 | 154 | 10 | 1,334 | |
