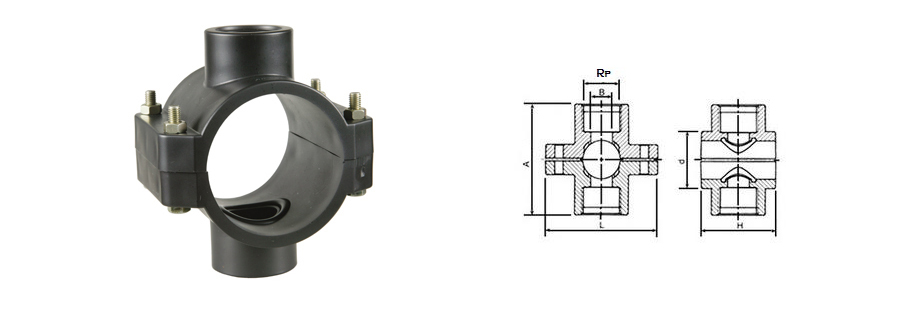

TABELLA DIMENSIONI
| Prodotto | dxRpxRp | L | A | H | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 161860032005 | 32x½" x½" | 92 | 80 | 60 | 6 | 0,136 |  |
| 161860032007 | 32x¾" x¾" | 92 | 82 | 60 | 6 | 0,138 | |
| 161860040005 | 40x½" x½" | 92 | 89 | 60 | 6 | 0,145 | |
| 161860040007 | 40x¾" x¾" | 92 | 91 | 60 | 6 | 0,147 | |
| 161860040010 | 40x1" x1" | 92 | 98 | 60 | 6 | 0,160 | |
| 161860050005 | 50x½" x½" | 106 | 101,6 | 73 | 6 | 0,184 | |
| 161860050007 | 50x¾" x¾" | 106 | 103,6 | 73 | 6 | 0,185 | |
| 161860050010 | 50x1" x1" | 106 | 108,6 | 73 | 6 | 0,195 | |
| 161860050013 | 50x1¼" x1¼" | 106 | 116,6 | 73 | 6 | 0,236 | |
| 161860063005 | 63x½" x½" | 116 | 115,6 | 84 | 6 | 0,284 | |
| 161860063007 | 63x¾" x¾" | 116 | 117,6 | 84 | 6 | 0,286 | |
| 161860063010 | 63x1" x1" | 116 | 122,6 | 84 | 6 | 0,294 | |
| 161860063015 | 63x1½" x1½" | 116 | 133 | 84 | 6 | 0,351 | |
| 161860075007 | 75x¾" x¾" | 122 | 129,6 | 98 | 6 | 0,372 | |
| 161860075010 | 75x1" x1" | 122 | 134,6 | 98 | 6 | 0,382 | |
| 161860075013 | 75x1¼" x1¼" | 122 | 144 | 98 | 6 | 0,415 | |
| 161860075020 | 75x2" x2" | 122 | 155 | 98 | 6 | 0,456 | |
| 161860090005 | 90x½" x½" | 141 | 141 | 105 | 6 | 0,458 | |
| 161860090007 | 90x¾" x¾" | 141 | 145 | 105 | 6 | 0,458 | |
| 161860090010 | 90x1" x1" | 141 | 150 | 105 | 6 | 0,467 | |
| 161860090013 | 90x1¼" x1¼" | 141 | 160 | 105 | 6 | 0,502 | |
| 161860090015 | 90x1½" x1½" | 141 | 162 | 105 | 6 | 0,516 | |
| 161860090020 | 90x2" x2" | 141 | 172 | 105 | 6 | 0,532 | |
| 161860110010 | 110x1" x1" | 165 | 173 | 116 | 6 | 0,572 | |
| 161860110020 | 110x2" x2" | 165 | 196 | 116 | 6 | 0,634 | |
| 161860125020 | 125x2" x2" | 184 | 208 | 124 | 6 | 0,857 | |
