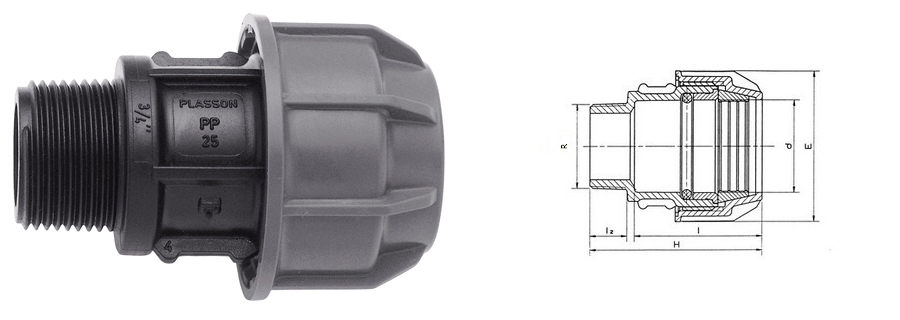

TABELLA DIMENSIONI
| Prodotto | dxR | H | l | E | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 140200016003 | 16x3/8" | 73 | 59 | 32 | 10 | 0,032 |  |
| 140200016005 | 16x½" | 79 | 59 | 39 | 10 | 0,032 | |
| 140200016007 | 16x¾" | 80 | 59 | 39 | 10 | 0,033 | |
| 140200020005 | 20x½" | 71 | 50 | 42 | 10 | 0,023 | |
| 140200020007 | 20x¾" | 71 | 50 | 42 | 10 | 0,024 | |
| 140200025005 | 25x½" | 75 | 54 | 50 | 10 | 0,034 | |
| 140200025007 | 25x¾" | 75 | 54 | 50 | 10 | 0,035 | |
| 140200025010 | 25x1" | 77 | 50 | 50 | 10 | 0,037 | |
| 140200032007 | 32x¾" | 82 | 66 | 61 | 10 | 0,058 | |
| 140200032010 | 32x1" | 84 | 60 | 61 | 10 | 0,058 | |
| 140200032013 | 32x1¼" | 86 | 58 | 61 | 10 | 0,065 | |
| 140200040010 | 40x1" | 97 | 73 | 73 | 10 | 0,090 | |
| 140200040013 | 40x1¼" | 99 | 73 | 73 | 10 | 0,094 | |
| 140200040015 | 40x1½" | 98 | 73 | 73 | 10 | 0,095 | |
| 140200050015 | 50x1½" | 107 | 80 | 92 | 10 | 0,147 | |
| 140200050020 | 50x2" | 110 | 90 | 92 | 10 | 0,152 | |
| 140200063020 | 63x2" | 120 | 99 | 106 | 10 | 0,273 | |
| 840206075020 | 75x2" | 188 | 154 | 132 | 10 | 0,690 | |
| 840206075025 | 75x2½" | 191 | 154 | 132 | 10 | 0,700 | |
| 840206075030 | 75x3" | 195 | 154 | 132 | 10 | 0,740 | |
| 840206090020 | 90x2" | 240 | 162 | 152 | 10 | 1,030 | |
| 840206090025 | 90x2½" | 233 | 160 | 152 | 10 | 1,125 | |
| 840206090030 | 90x3" | 230 | 163 | 152 | 10 | 1,116 | |
| 840206090040 | 90x4" | 223 | 181 | 152 | 10 | 1,120 | |
| 840206110030 | 110x3" | 258 | 215 | 181 | 10 | 1,780 | |
| 840206110040 | 110x4" | 267 | 215 | 181 | 10 | 1,916 | |
