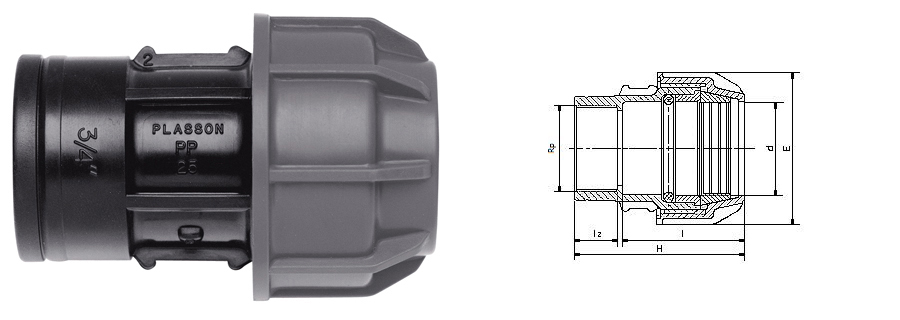

TABELLA DIMENSIONI
| Prodotto | dxRp | H | l | E | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 140300016005 | 16x½" | 77 | 55 | 39 | 10 | 0,037 |  |
| 140300016007 | 16x¾" | 79 | 56 | 39 | 10 | 0,035 | |
| 140300020005 | 20x½" | 71 | 51 | 42 | 10 | 0,026 | |
| 140300020007 | 20x¾" | 72 | 51 | 42 | 10 | 0,029 | |
| 140300025007 | 25x¾" | 75 | 54 | 50 | 10 | 0,038 | |
| 140300025010 | 25x1" | 80 | 54 | 50 | 10 | 0,042 | |
| 140300032007 | 32x¾" | 82 | 61 | 61 | 10 | 0,062 | |
| 140300032010 | 32x1" | 84 | 61 | 61 | 10 | 0,062 | |
| 140300040010 | 40x1" | 97 | 73 | 73 | 10 | 0,097 | |
| 140300040013 | 40x1¼" | 101 | 73 | 73 | 10 | 0,112 | |
| 140300040015 | 40x1½" | 101 | 73 | 73 | 10 | 0,122 | |
| 140300050015 | 50x1½" | 107 | 82 | 92 | 10 | 0,173 | |
| 140300050020 | 50x2" | 112 | 82 | 92 | 10 | 0,192 | |
| 140300063020 | 63x2" | 119 | 86 | 106 | 10 | 0,262 | |
| 840306075020 | 75x2" | 193 | 135 | 132 | 10 | 0,685 | |
| 840306075025 | 75x2½" | 176 | 135 | 132 | 10 | 0,650 | |
| 840306090030 | 90x3" | 223 | 184 | 152 | 10 | 1,190 | |
| 840306090040 | 90X4" | 244 | 215 | 180 | 6 | 1,410 | |
| 840306110030 | 110X3" | 244 | 184 | 152 | 10 | 1,940 | |
| 840306110040 | 110x4" | 264 | 215 | 180 | 6 | 1,947 | |
