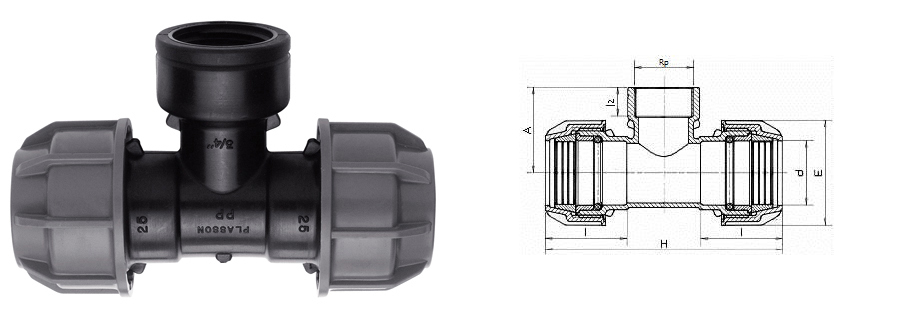

TABELLA DIMENSIONI
| Prodotto | dxRpxd | H | A | E | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 141400016005 | 16x½"x16 | 124 | 30 | 39 | 10 | 0,066 |  |
| 141400016007 | 16x¾"x16 | 122 | 30 | 39 | 10 | 0,059 | |
| 141400020005 | 20x½"x20 | 113 | 43 | 42 | 10 | 0,048 | |
| 141400020007 | 20x¾"x20 | 113 | 45 | 42 | 10 | 0,050 | |
| 141400025005 | 25x½"x25 | 123 | 45 | 50 | 10 | 0,071 | |
| 141400025007 | 25x¾"x25 | 123 | 48 | 50 | 10 | 0,071 | |
| 141400025010 | 25x1"x25 | 123 | 50 | 50 | 10 | 0,075 | |
| 141400032005 | 32x½"x32 | 150 | 49 | 61 | 10 | 0,120 | |
| 141400032007 | 32x¾"x32 | 150 | 52 | 61 | 10 | 0,118 | |
| 141400032010 | 32x1"x32 | 150 | 55 | 61 | 10 | 0,123 | |
| 141400040010 | 40x1"x40 | 173 | 63 | 73 | 10 | 0,188 | |
| 141400040013 | 40x1¼"x40 | 173 | 67 | 73 | 10 | 0,207 | |
| 141400040015 | 40x1½"x40 | 173 | 68 | 73 | 10 | 0,204 | |
| 141400050015 | 50x1½"x50 | 200 | 73 | 89 | 10 | 0,323 | |
| 141400050020 | 50x2"x50 | 200 | 79 | 89 | 10 | 0,348 | |
| 141400063020 | 63x2"x63 | 239 | 86 | 106 | 10 | 0,522 | |
| 841406075020 | 75x2"x75 | 366 | 110 | 132 | 10 | 1,496 | |
| 841406075025 | 75x2½"x75 | 338 | 85 | 132 | 10 | 1,430 | |
| 841406075030 | 75x3"x75 | 366 | 110 | 132 | 10 | 1,594 | |
| 841406090030 | 90x3"x90 | 413 | 116 | 152 | 10 | 2,120 | |
| 841406110040 | 110x4"x110 | 511 | 140 | 181 | 6 | 4,073 | |
