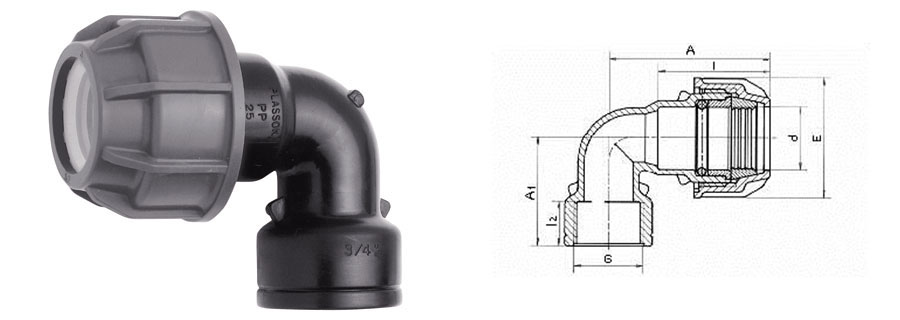

TABELLA DIMENSIONI
| Prodotto | dxRp | A | A1 | E | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 141500016005 | 16x½" | 66 | 39 | 39 | 10 | 0,039 |  |
| 141500020005 | 20x½" | 56 | 42 | 42 | 10 | 0,029 | |
| 141500020007 | 20x¾" | 56 | 42 | 42 | 10 | 0,030 | |
| 141500025005 | 25x½" | 68 | 45 | 50 | 10 | 0,044 | |
| 141500025007 | 25x¾" | 68 | 45 | 50 | 10 | 0,043 | |
| 141500025010 | 25x1" | 68 | 50 | 50 | 10 | 0,048 | |
| 141500032007 | 32x¾" | 75 | 47 | 61 | 10 | 0,064 | |
| 141500032010 | 32x1" | 75 | 60 | 61 | 10 | 0,070 | |
| 141500032013 | 32X1¼" | 75 | 66 | 61 | 10 | 0,091 | |
| 141500040013 | 40x1¼" | 86 | 70 | 73 | 10 | 0,130 | |
| 141500040015 | 40x1½" | 86 | 70 | 73 | 10 | 0,141 | |
| 141500050015 | 50x1½" | 102 | 79 | 92 | 10 | 0,203 | |
| 141500050020 | 50x2" | 102 | 79 | 92 | 10 | 0,226 | |
| 141500063020 | 63x2" | 115 | 86 | 106 | 10 | 0,327 | |
| 841506075020 | 75x2" | 191 | 100 | 131 | 10 | 0,770 | |
| 841506075025 | 75x2½" | 195 | 105 | 132 | 10 | 0,860 | |
| 841506075030 | 75x3" | 195 | 105 | 132 | 10 | 0,982 | |
