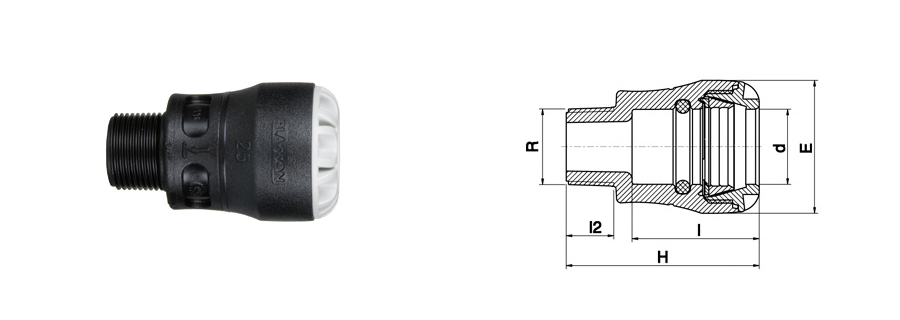

TABELLA DIMENSIONI
| Prodotto | dxR | H | l | E | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 1002U0020005 | 20x½" | 70 | 45 | 41 | 16 | 0,040 |  |
| 1002U0020007 | 20x¾" | 71 | 45 | 41 | 16 | 0,041 | |
| 1002U0025005 | 25x½" | 75 | 48 | 47 | 16 | 0,051 | |
| 1002U0025007 | 25x¾" | 76 | 48 | 47 | 16 | 0,052 | |
| 1002U0025010 | 25x1" | 78 | 48 | 47 | 16 | 0,055 | |
| 1002U0032007 | 32x¾" | 82 | 55 | 58 | 16 | 0,083 | |
| 1002U0032010 | 32x1" | 84 | 55 | 58 | 16 | 0,086 | |
| 1002U0032013 | 32x1¼" | 86 | 55 | 58 | 16 | 0,090 | |
| 1002U0032015 | 32x1½" | 86 | 55 | 58 | 16 | 0,094 | |
| 1002U0040010 | 40x1" | 104 | 73 | 70 | 16 | 0,145 | |
| 1002U0040013 | 40x1¼" | 106 | 73 | 70 | 16 | 0,148 | |
| 1002U0040015 | 40x1½" | 106 | 73 | 70 | 16 | 0,152 | |
| 1002U0050013 | 50x1¼" | 122 | 78 | 78 | 16 | 0,234 | |
| 1002U0050015 | 50x1½" | 114 | 81 | 85 | 16 | 0,226 | |
| 1002U0050020 | 50x2" | 118 | 81 | 85 | 16 | 0,232 | |
| 1002U0063015 | 63x1½" | 125 | 92 | 103 | 16 | 0,377 | |
| 1002U0063020 | 63x2" | 129 | 92 | 103 | 16 | 0,367 | |
