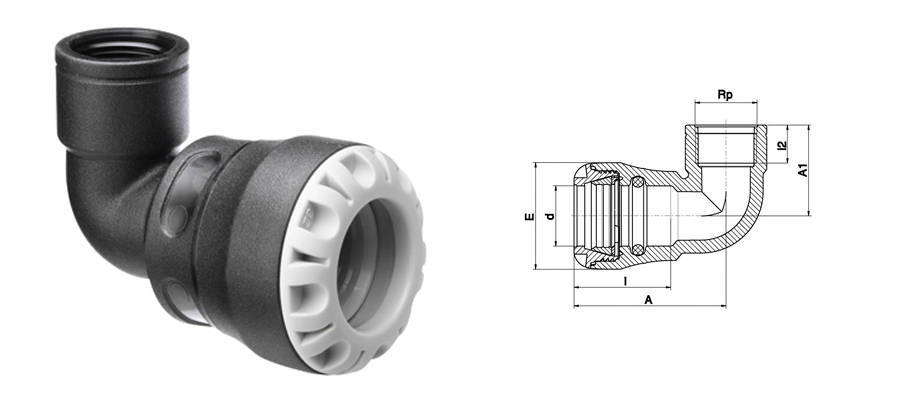

TABELLA DIMENSIONI
| Prodotto | dxRp | A | l | E | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 1015U0020005 | 20x½" | 67 | 45 | 41 | 16 | 0,051 |  |
| 1015U0020007 | 20x¾" | 67 | 45 | 41 | 16 | 0,054 | |
| 1015U0025005 | 25x½" | 74 | 48 | 47 | 16 | 0,063 | |
| 1015U0025007 | 25x¾" | 74 | 48 | 47 | 16 | 0,069 | |
| 1015U0025010 | 25x1" | 74 | 48 | 47 | 16 | 0,082 | |
| 1015U0032007 | 32x¾" | 83 | 54 | 58 | 16 | 0,095 | |
| 1015U0032010 | 32x1" | 83 | 54 | 58 | 16 | 0,110 | |
| 1015U0032013 | 32x1¼" | 83 | 54 | 58 | 16 | 0,145 | |
| 1015U0040013 | 40x1¼" | 107 | 72 | 70 | 16 | 0,225 | |
| 1015U0050015 | 50x1½" | 119 | 79 | 85 | 16 | 0,329 | |
| 1015U0063020 | 63x2" | 141 | 79 | 103 | 16 | 0,533 | |
