TABELLA DIMENSIONI

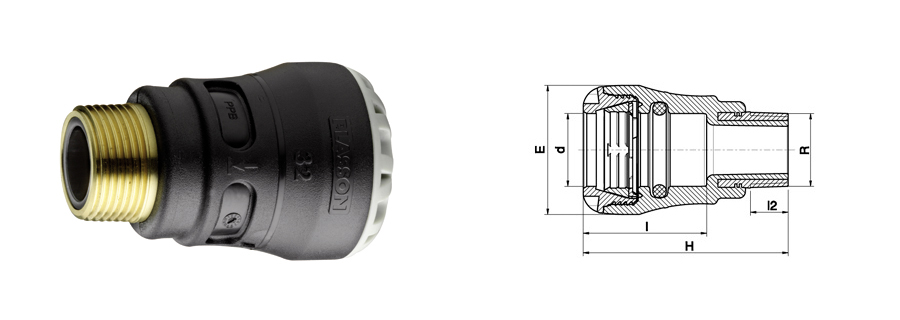

| Prodotto | dxR | H | l | E | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 1072U0020005 | 20x½" | 76 | 45 | 41 | 16 | 0,072 |  |
| 1072U0020007 | 20x¾" | 77 | 44 | 41 | 16 | 0,082 | |
| 1072U0025005 | 25x½" | 79 | 48 | 47 | 16 | 0,082 | |
| 1072U0025007 | 25x¾" | 80 | 48 | 47 | 16 | 0,091 | |
| 1072U0025010 | 25x1" | 85 | 48 | 47 | 16 | 0,126 | |
| 1072U0032007 | 32x¾" | 88 | 55 | 58 | 16 | 0,120 | |
| 1072U0032010 | 32x1" | 92 | 55 | 58 | 16 | 0,153 | |
| 1072U0032013 | 32X1¼" | 100 | 55 | 58 | 16 | 0,200 | |
| 1072U0032015 | 32x1½" | 101 | 55 | 58 | 16 | 0,239 | |
| 1072U0040010 | 40x1" | 110 | 73 | 70 | 16 | 0,216 | |
| 1072U0040013 | 40x1¼" | 113 | 73 | 70 | 16 | 0,260 | |
| 1072U0040015 | 40x1½" | 113 | 73 | 70 | 16 | 0,290 | |
| 1072U0050010 | 50x1" | 85 | 48 | 47 | 16 | 0,240 | |
| 1072U0050013 | 50x1¼" | 127 | 81 | 85 | 16 | 0,340 | |
| 1072U0050015 | 50x1½" | 120 | 81 | 85 | 16 | 0,366 | |
| 1072U0050020 | 50x2" | 127 | 81 | 85 | 16 | 0,449 | |
| 1072U0063015 | 63x1½" | 132 | 92 | 103 | 16 | 0,500 | |
| 1072U0063020 | 63x2" | 139 | 92 | 103 | 16 | 0,580 | |
