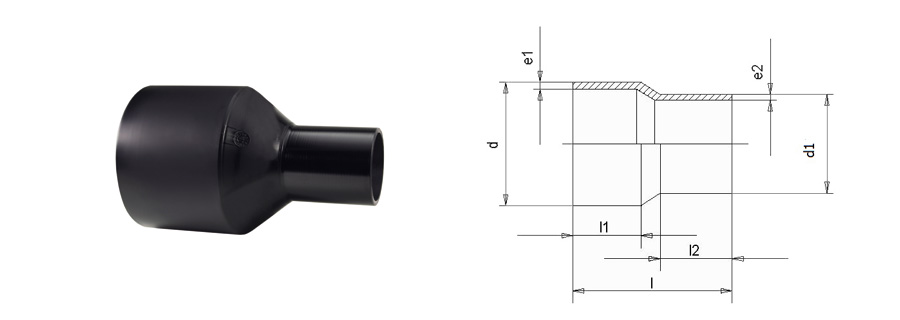

TABELLA DIMENSIONI
| Prodotto | dxd1 | l | SDR | PN | peso (kg) |
|---|---|---|---|---|---|
| 491107040032 | 40x32 | 115 | 11 | 16 | 0,040 |
| 491107050032 | 50x32 | 132 | 11 | 16 | 0,065 |
| 491107063032 | 63x32 | 142 | 11 | 16 | 0,100 |
| 491107063040 | 63x40 | 146 | 11 | 16 | 0,120 |
| 491107063050 | 63x50 | 152 | 11 | 16 | 0,140 |
| 491107075040 | 75x40 | 147 | 11 | 16 | 0,145 |
| 491107075050 | 75x50 | 150 | 11 | 16 | 0,200 |
| 491107075063 | 75x63 | 166 | 11 | 16 | 0,225 |
| 491107090050 | 90x50 | 180 | 11 | 16 | 0,466 |
| 491107090063 | 90x63 | 182 | 11 | 16 | 0,500 |
| 491107090075 | 90x75 | 185 | 11 | 16 | 0,300 |
| 491107110050 | 110x50 | 185 | 11 | 16 | 0,440 |
| 491107110063 | 110x63 | 185 | 11 | 16 | 0,440 |
| 491107110075 | 110x75 | 185 | 11 | 16 | 0,490 |
| 491107110090 | 110x90 | 185 | 11 | 16 | 0,520 |
| 491107125063 | 125x63 | 200 | 11 | 16 | 0,610 |
| 491107125075 | 125x75 | 200 | 11 | 16 | 0,513 |
| 491107125090 | 125x90 | 200 | 11 | 16 | 0,655 |
| 491107125110 | 125x110 | 200 | 11 | 16 | 0,513 |
| 491107140090 | 140x90 | 225 | 11 | 16 | 0,895 |
| 491107140110 | 140x110 | 230 | 11 | 16 | 0,920 |
| 491107140125 | 140x125 | 230 | 11 | 16 | 0,970 |
| 491107160090 | 160x90 | 248 | 11 | 16 | 1,292 |
| 491107160110 | 160x110 | 245 | 11 | 16 | 1,350 |
| 491107160125 | 160x125 | 245 | 11 | 16 | 1,405 |
| 491107160140 | 160x140 | 260 | 11 | 16 | 1,585 |
| 491107180090 | 180x90 | 237 | 11 | 16 | 1,530 |
| 491107180110 | 180x110 | 245 | 11 | 16 | 1,720 |
| 491107180125 | 180x125 | 245 | 11 | 16 | 1,840 |
| 491107180140 | 180x140 | 270 | 11 | 16 | 1,980 |
| 491107180160 | 180x160 | 270 | 11 | 16 | 2,120 |
| 491107200140 | 200x140 | 270 | 11 | 16 | 2,310 |
| 491107200160 | 200x160 | 275 | 11 | 16 | 2,430 |
| 491107200180 | 200x180 | 275 | 11 | 16 | 2,640 |
| 491107225160 | 225x160 | 295 | 11 | 16 | 3,120 |
| 491107225180 | 225x180 | 290 | 11 | 16 | 3,320 |
| 491107225200 | 225x200 | 290 | 11 | 16 | 3,255 |
| 491107250160 | 250x160 | 290 | 11 | 16 | 3,705 |
| 491107250180 | 250x180 | 295 | 11 | 16 | 4,050 |
| 491107250200 | 250x200 | 302 | 11 | 16 | 4,380 |
| 491107250225 | 250x225 | 310 | 11 | 16 | 4,850 |
| 491107280200 | 280x200 | 333 | 11 | 16 | 5,850 |
| 491107315225 | 315x225 | 365 | 11 | 16 | 7,900 |
| 491107315250 | 315x250 | 365 | 11 | 16 | 8,100 |
| 491107315280 | 315x280 | 365 | 11 | 16 | 8,800 |
