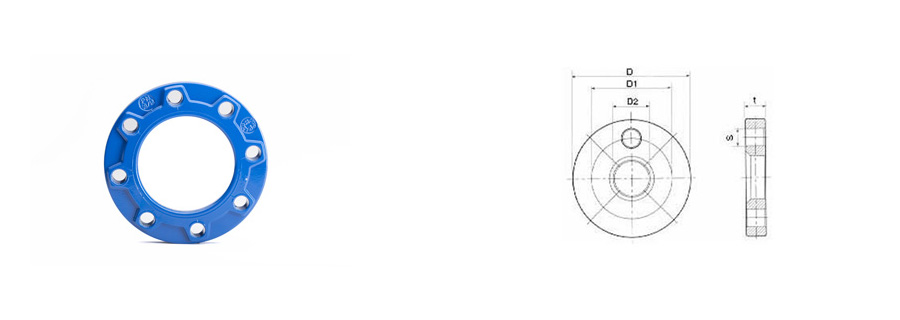

TABELLA DIMENSIONI
| Prodotto | d | DN | n°fori | interasse | foratura PN | peso (kg) |
|---|---|---|---|---|---|---|
| 6599018032 | 32 | 25 | 4 | 85 | 10-16 | 0,250 |
| 6599018040 | 40 | 32 | 4 | 100 | 10-16 | 0,500 |
| 6599018050 | 50 | 40 | 4 | 110 | 10-16 | 0,550 |
| 6599018063 | 63 | 50 | 4 | 125 | 10-16 | 0,640 |
| 6599018075 | 75 | 65 | 4 | 145 | 10-16 | 0,800 |
| 6599018090 | 90 | 80 | 8 | 160 | 10-16 | 0,950 |
| 6599018110 | 110 | 100 | 8 | 180 | 10-16 | 1,100 |
| 6599018125 | 125 | 100 | 8 | 180 | 10-16 | 1,030 |
| 6599018140 | 140 | 125 | 8 | 210 | 10-16 | 1,320 |
| 6599018160 | 160 | 150 | 8 | 240 | 10-16 | 1,780 |
| 6599018180 | 180 | 150 | 8 | 240 | 10-16 | 1,600 |
| 6599017200 | 200 | 200 | 8 | 295 | 10 | 2,300 |
| 6599018200 | 200 | 200 | 12 | 295 | 16 | 2,300 |
| 6599017225 | 225 | 200 | 8 | 295 | 10 | 2,200 |
| 6599018225 | 225 | 200 | 12 | 295 | 16 | 2,200 |
| 6599017250 | 250 | 250 | 12 | 350 | 10 | 3,030 |
| 6599018250 | 250 | 250 | 12 | 355 | 16 | 3,030 |
| 6599017280 | 280 | 250 | 12 | 350 | 10 | 3,050 |
| 6599018280 | 280 | 250 | 12 | 355 | 16 | 3,050 |
| 6599017315 | 315 | 300 | 12 | 400 | 10 | 3,570 |
| 6599018315 | 315 | 300 | 12 | 410 | 16 | 3,570 |
| 6599017355 | 355 | 350 | 16 | 460 | 10 | 5,000 |
| 6599017400 | 400 | 400 | 16 | 525 | 10 | 6,200 |
