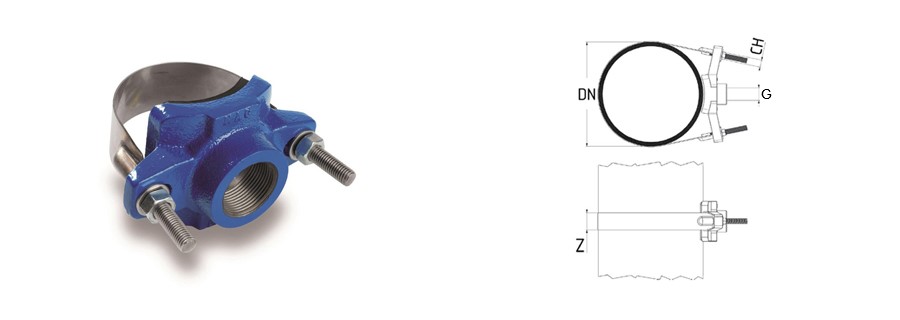

TABELLA DIMENSIONI
| Prodotto | DN | Dmin-Dmax | G | Z | CH | peso (kg) |
|---|---|---|---|---|---|---|
| 26148M040010 | 40 | 48-55 | 1" | 40 | 19 | 0,500 |
| 26148M050010 | 50 | 60-68 | 1" | 40 | 19 | 0,700 |
| 26148M050013 | 50 | 60-68 | 1.1/4" | 40 | 19 | 1,200 |
| 26148M050015 | 50 | 60-68 | 1.1/2" | 40 | 19 | 1,100 |
| 26148M060010 | 60-65 | 72-80 | 1" | 40 | 19 | 1,300 |
| 26148M060013 | 60-65 | 72-80 | 1.1/4" | 40 | 19 | 1,600 |
| 26148M060015 | 60-65 | 72-80 | 1.1/2" | 40 | 19 | 1,500 |
| 26148M080010 | 80 | 88-104 | 1" | 40 | 19 | 1,500 |
| 26148M080013 | 80 | 88-104 | 1.1/4" | 40 | 19 | 1,800 |
| 26148M080015 | 80 | 88-104 | 1.1/2" | 40 | 19 | 1,700 |
| 26148M080020 | 80 | 88-104 | 2" | 40 | 19 | 1,800 |
| 26148M090010 | 80 | 102-112 | 1" | 40 | 19 | 1,600 |
| 26148M090020 | 80 | 102-112 | 2" | 40 | 19 | 2,350 |
| 26148M100010 | 100 | 112-126 | 1" | 40 | 19 | 1,950 |
| 26148M100013 | 100 | 112-126 | 1.1/4" | 40 | 19 | 2,200 |
| 26148M100015 | 100 | 112-126 | 1.1/2" | 40 | 19 | 2,100 |
| 26148M100020 | 100 | 112-126 | 2" | 40 | 19 | 2,400 |
| 26148M125010 | 125 | 140-154 | 1" | 40 | 19 | 2,100 |
| 26148M125013 | 125 | 140-154 | 1.1/4" | 40 | 19 | 2,400 |
| 26148M125015 | 125 | 140-154 | 1.1/2" | 40 | 19 | 2,300 |
| 26148M125020 | 125 | 140-154 | 2" | 40 | 19 | 2,700 |
| 26148M150010 | 150 | 168-184 | 1" | 40 | 19 | 2,150 |
| 26148M150013 | 150 | 168-184 | 1.1/4" | 40 | 19 | 2,450 |
| 26148M150015 | 150 | 168-184 | 1.1/2" | 40 | 19 | 2,400 |
| 26148M150020 | 150 | 168-184 | 2" | 40 | 19 | 2,750 |
| 26148M175015 | 175 | 190-205 | 1.1/2" | 40 | 19 | 2,400 |
| 26148M175020 | 175 | 190-205 | 2" | 40 | 19 | 2,800 |
| 26148M200010 | 200 | 218-234 | 1" | 40 | 19 | 2,700 |
| 26148M200013 | 200 | 218-234 | 1.1/4" | 40 | 19 | 2,900 |
| 26148M200015 | 200 | 218-234 | 1.1/2" | 40 | 19 | 2,800 |
| 26148M200020 | 200 | 218-234 | 2" | 40 | 19 | 3,000 |
| 26148M250010 | 250 | 272-286 | 1" | 40 | 19 | 3,200 |
| 26148M250015 | 250 | 272-286 | 1.1/2" | 40 | 19 | 3,150 |
| 26148M250020 | 250 | 272-286 | 2" | 40 | 19 | 3,350 |
