Plasson Italia

29600 - GIUNTO NEO (44 articoli)

scarica scheda tecnica attendere

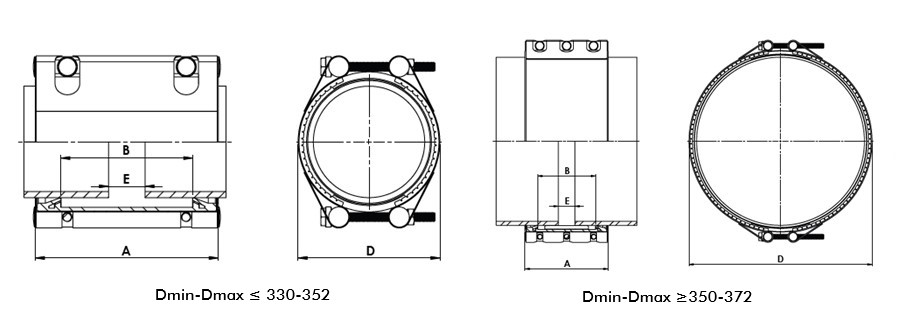

TABELLA DIMENSIONI

Prodotto Dmin-Dmax A B D E peso (kg)
29600055 47-55 200 139 70,82 15 2,000
29600062 54-62 200 139 77,82 15 2,100
29600071 63-71 200 139 86,82 15 2,200
29600084 72-84 200 139 99,82 15 2,400
29600095 82-95 200 139 110,82 15 2,500
29600110 93-110 200 139 129,4 15 2,800
29600126 109-126 200 139 145,4 15 3,000
29600142 125-142 200 139 161,4 15 3,200
29600158 141-158 200 139 177,4 15 3,400
29600172 155-172 200 141 194 15 4,600
29600185 168-185 200 141 230 15 4,800
29600208 186-208 200 141 230 15 5,600
29600228 206-228 200 141 250 15 5,900
29600251 229-251 200 141 273 15 8,000
29600270 248-270 200 141 292 15 8,400
29600287 265-287 200 141 309 15 9,600
29600308 286-308 200 141 330 15 9,800
29600331 309-331 200 141 353 15 10,200
29600352 330-352 200 141 374 15 10,600
29600372 350-372 200 141 394 15 12,400
29600395 373-395 200 141 417 15 12,800
29600417 395-417 200 141 439 15 13,200
29600425 397-425 201 142 450 15 13,440
29600450 422-450 201 142 475 15 13,890
29600475 447-475 201 142 500 15 14,350
29600500 472-500 202 142 526 15 18,210
29600525 497-525 202 142 551 15 18,730
29600550 522-550 202 142 576 15 19,990
29600575 547-575 202 142 601 15 20,520
29600600 572-600 204 142 628 15 25,390
29600625 597-625 204 142 653 15 26,050
29600650 622-650 204 142 678 15 26,710
29600675 647-675 204 142 703 15 27,370
29600700 672-700 204 142 728 15 28,040
29600725 697-725 204 142 753 15 28,700
29600750 722-750 204 142 778 15 29,360
29600775 747-775 206 142 805 15 39,640
29600800 772-800 206 142 830 15 40,440
29600825 797-825 206 142 855 15 41,240
29600850 822-850 206 142 880 15 42,040
29600875 847-875 206 142 905 15 42,850
29600900 872-900 206 142 930 15 43,650
29600925 897-925 206 142 955 15 44,450
29600950 922-950 206 142 980 15 45,250

Disponibile a richiesta fino al DN 1250
