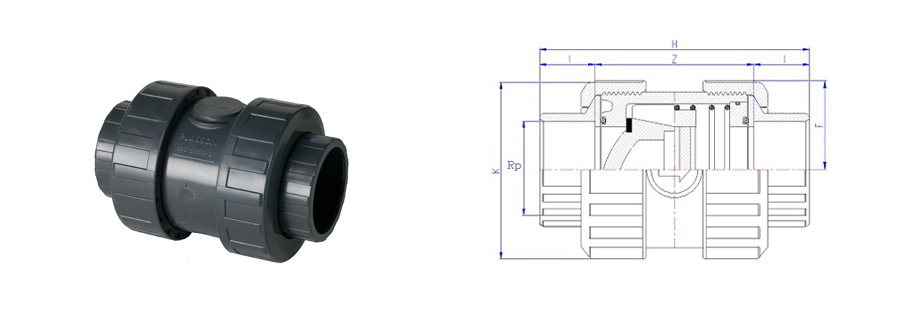

TABELLA DIMENSIONI
| Prodotto | Rp | DN | H | K | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 1061003 | 3/8" | 10 | 71 | 45 | 16 | 0,095 |  |
| 1061005 | ½" | 15 | 75 | 45 | 16 | 0,105 | |
| 1061007 | ¾" | 20 | 89 | 55 | 16 | 0,204 | |
| 1061010 | 1" | 25 | 102 | 66 | 16 | 0,284 | |
| 1061013 | 1¼" | 32 | 120 | 96 | 16 | 0,681 | |
| 1061015 | 1½" | 40 | 142 | 80 | 16 | 0,479 | |
| 1061020 | 2" | 50 | 169 | 118 | 16 | 1,439 | |
| 1041025 | 2½" | 65 | 215 | 139 | 10 | 2,200 | |
| 1041030 | 3" | 80 | 250 | 165 | 10 | 3,100 | |
| 1041040 | 4" | 100 | 295 | 207 | 10 | 5,900 | |
