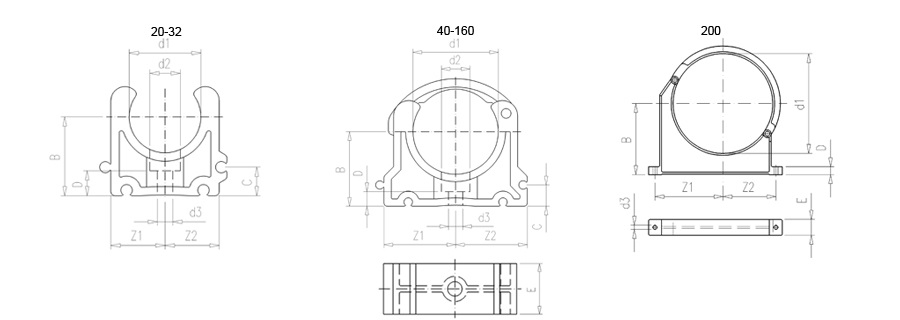

TABELLA DIMENSIONI
| Prodotto | d | B | Z1 | Z2 | E | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 652050020 | 20 | 25 | 16.5 | 19 | 16 | 0,006 |  |
| 652050025 | 25 | 27.5 | 19 | 21.5 | 16 | 0,008 | |
| 652050032 | 32 | 31 | 24 | 26.5 | 16 | 0,012 | |
| 652050040 | 40 | 35 | 33.5 | 33.5 | 22 | 0,015 | |
| 652050050 | 50 | 40 | 37 | 37 | 22 | 0,030 | |
| 652050063 | 63 | 51.5 | 44.5 | 44.5 | 25 | 0,040 | |
| 652050075 | 75 | 57.5 | 52 | 52 | 25 | 0,063 | |
| 652050090 | 90 | 65 | 64.5 | 64.5 | 28 | 0,106 | |
| 652050110 | 110 | 75 | 78 | 78 | 28 | 0,125 | |
| 652050125 | 125 | 90 | 88 | 88 | 31.5 | 0,166 | |
| 652050140 | 140 | 110 | 109 | 109 | 31.5 | 0,250 | |
| 652050160 | 160 | 107.5 | 109 | 109 | 31.5 | 0,275 | |
| 652050200 | 200 | 175 | 151.5 | 119.5 | 40 | 0,425 | |
