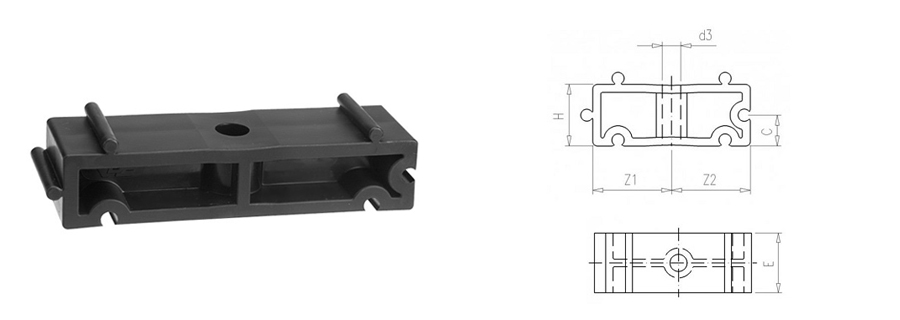

TABELLA DIMENSIONI
| Prodotto | d | d3 | Z1 | Z2 | H | E | peso (kg) |
|---|---|---|---|---|---|---|---|
| 652050020D | 20 | 5.5 | 16.5 | 19 | 20 | 16 | 0,004 |
| 652050025D | 25 | 5.5 | 19 | 21.5 | 20 | 16 | 0,006 |
| 652050032D | 32 | 6.5 | 28.5 | 28.5 | 20 | 22 | 0,009 |
| 652050040D | 40 | 6.5 | 33.5 | 33.5 | 20 | 22 | 0,012 |
| 652050050D | 50 | 6.5 | 37 | 37 | 20 | 22 | 0,025 |
| 652050063D | 63 | 8.5 | 44.5 | 44.5 | 20 | 25 | 0,030 |
| 652050075D | 75 | 8.5 | 52 | 52 | 20 | 25 | 0,045 |
| 652050090D | 90 | 8.5 | 64.5 | 64.5 | 20 | 28 | 0,075 |
| 652050110D | 110 | 8.5 | 78 | 78 | 20 | 28 | 0,090 |
| 652050125D | 125 | 8.5 | 88 | 88 | 20 | 31.5 | 0,120 |
| 652050140D | 140 | 8.5 | 97 | 97 | 20 | 31.5 | 0,180 |
| 652050160D | 160 | 8.5 | 109 | 109 | 20 | 31.5 | 0,200 |
