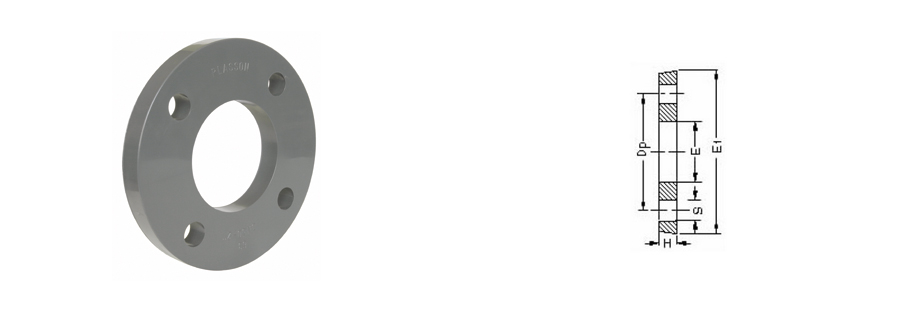

TABELLA DIMENSIONI
| Prodotto | d | DN | Dp | n°fori | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 059000032 | 32 | 25 | 85 | 4 | 16 | 0,130 |  |
| 059000040 | 40 | 32 | 100 | 4 | 16 | 0,205 | |
| 059000050 | 50 | 40 | 110 | 4 | 16 | 0,235 | |
| 059000063 | 63 | 50 | 125 | 4 | 16 | 0,300 | |
| 059000075 | 75 | 65 | 145 | 4 | 16 | 0,390 | |
| 059000090 | 90 | 80 | 160 | 8 | 16 | 0,416 | |
| 059000110 | 110 | 100 | 180 | 8 | 16 | 0,540 | |
| 059000125 | 125 | 110 | 191 | 8 | 16 | 0,585 | |
| 05900125125 | 125 | 125 | 210-216 | 8 | 16 | 0,986 | |
| 059000140 | 140 | 125 | 211 | 8 | 16 | 0,750 | |
| 059000160 | 160 | 150 | 241 | 8 | 16 | 1,050 | |
| 059000200 | 200 | 200 | 297 | 8 | 10 | 1,850 | |
| 059000225 | 225 | 200 | 297 | 8 | 10 | 2,100 | |
| 059000250 | 250 | 250 | 350-356 | 12 | 10 | 1,790 | |
| 059000315 | 315 | 300 | 400-432 | 12 | 10 | 2,700 | |
