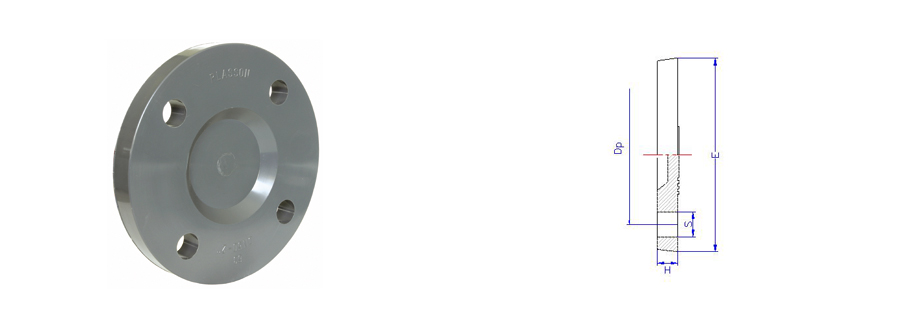

TABELLA DIMENSIONI
| Prodotto | d | DN | Dp | n°fori | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 059100032 | 32 | 25 | 85 | 4 | 16 | 0,143 |  |
| 059100040 | 40 | 32 | 100 | 4 | 16 | 0,240 | |
| 059100050 | 50 | 40 | 110 | 4 | 16 | 0,286 | |
| 059100063 | 63 | 50 | 125 | 4 | 16 | 0,390 | |
| 059100090 | 90 | 80 | 160 | 8 | 16 | 0,640 | |
| 059100110 | 110 | 100 | 180 | 8 | 16 | 0,786 | |
| 059100125 | 125 | 110 | 191 | 8 | 16 | 0,848 | |
| 059100140 | 140 | 125 | 211 | 8 | 16 | 1,125 | |
| 059100160 | 160 | 150 | 241 | 8 | 16 | 1,743 | |
| 059100200 | 200 | 200 | 297 | 8 | 10 | 2,700 | |
