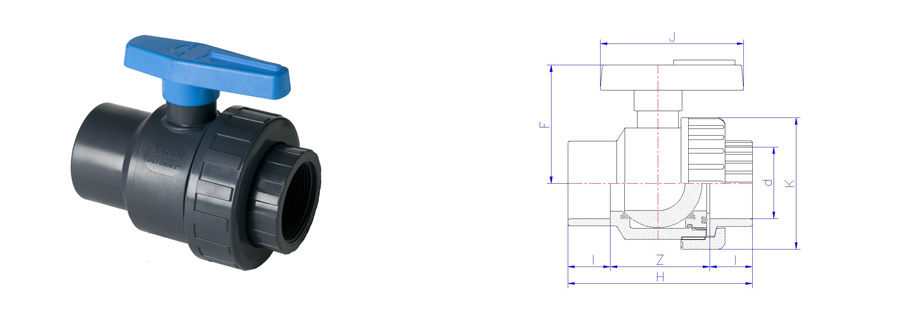

TABELLA DIMENSIONI
| Prodotto | d | DN | H | J | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 1340016 | 16 | 10 | 69 | 65 | 16 | 0,085 |  |
| 1340020 | 20 | 15 | 73 | 65 | 16 | 0,090 | |
| 1340025 | 25 | 20 | 87 | 73 | 16 | 0,159 | |
| 1340032 | 32 | 25 | 99 | 78 | 16 | 0,222 | |
| 1340040 | 40 | 32 | 116 | 96 | 16 | 0,376 | |
| 1340050 | 50 | 40 | 138 | 110 | 16 | 0,536 | |
| 1340063 | 63 | 50 | 166 | 129 | 16 | 1,109 | |
| 1320075 | 75 | 65 | 215 | 132 | 10 | 1,800 | |
| 1320090 | 90 | 80 | 250 | 153 | 10 | 2,850 | |
| 1320110 | 110 | 100 | 295 | 185 | 10 | 5,300 | |
