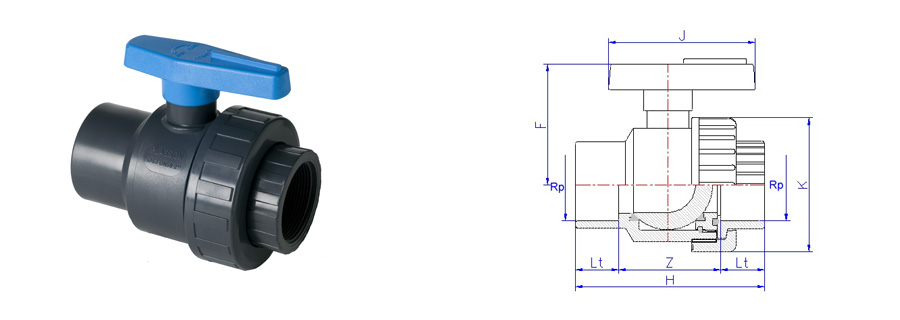

TABELLA DIMENSIONI
| Prodotto | Rp | DN | H | J | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 1341003 | 3/8" | 10 | 69 | 65 | 16 | 0,085 |  |
| 1341005 | ½" | 15 | 73 | 65 | 16 | 0,090 | |
| 1341007 | ¾" | 20 | 87 | 73 | 16 | 0,159 | |
| 1341010 | 1" | 25 | 99 | 78 | 16 | 0,222 | |
| 1341013 | 1¼" | 32 | 116 | 96 | 16 | 0,376 | |
| 1341015 | 1½" | 40 | 138 | 110 | 16 | 0,536 | |
| 1341020 | 2" | 50 | 166 | 129 | 16 | 1,109 | |
| 1321025 | 2½" | 65 | 215 | 132 | 10 | 1,800 | |
| 1321030 | 3" | 80 | 250 | 153 | 10 | 2,850 | |
| 1321040 | 4" | 100 | 295 | 185 | 10 | 5,300 | |
