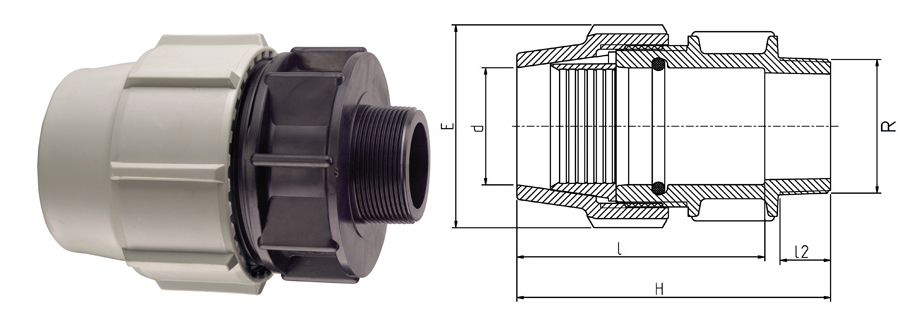

TABELLA DIMENSIONI
| Prodotto | dxR | H | l | E | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 0702060160030A | 16x3/8" | 76 | 59 | 39 | 16 | 0,033 |  |
| 070206016005 | 16x½" | 79 | 59 | 39 | 16 | 0,034 | |
| 070206016007 | 16x¾" | 79 | 59 | 39 | 16 | 0,035 | |
| 070200020005 | 20x½" | 92 | 71 | 48 | 16 | 0,058 | |
| 070200020007 | 20x¾" | 92 | 71 | 48 | 16 | 0,059 | |
| 070200020010 | 20x1" | 86 | 52 | 48 | 16 | 0,060 | |
| 070200025005 | 25x½" | 94 | 72 | 54 | 16 | 0,067 | |
| 070200025007 | 25x¾" | 95 | 72 | 54 | 16 | 0,073 | |
| 070200025010 | 25x1" | 97 | 72 | 54 | 16 | 0,079 | |
| 070200032007 | 32x¾" | 106 | 83 | 64 | 16 | 0,113 | |
| 070200032010 | 32x1" | 107 | 83 | 64 | 16 | 0,122 | |
| 070200032013 | 32x1¼" | 110 | 83 | 64 | 16 | 0,114 | |
| 070200032015 | 32x1½" | 110 | 83 | 64 | 16 | 0,126 | |
| 070200040010 | 40x1" | 118 | 91 | 82 | 16 | 0,184 | |
| 070200040013 | 40x1¼" | 117 | 90 | 82 | 16 | 0,185 | |
| 070200040015 | 40x1½" | 117 | 90 | 82 | 16 | 0,184 | |
| 070200040020 | 40x2" | 123 | 91 | 82 | 16 | 0,208 | |
| 070200050010 | 50x1" | 133 | 106 | 96 | 16 | 0,264 | |
| 070200050013 | 50x1¼" | 136 | 106 | 96 | 16 | 0,264 | |
| 070200050015 | 50x1½" | 136 | 109 | 96 | 16 | 0,275 | |
| 070200050020 | 50x2" | 140 | 109 | 96 | 16 | 0,282 | |
| 070200063013 | 63x1¼" | 154 | 123 | 113 | 16 | 0,443 | |
| 070200063015 | 63x1½" | 154 | 123 | 113 | 16 | 0,451 | |
| 070200063020 | 63x2" | 167 | 123 | 113 | 16 | 0,461 | |
| 070200063025 | 63x2½" | 160 | 123 | 113 | 16 | 0,458 | |
| 870200075020 | 75x2" | 189 | 156 | 132 | 16 | 0,737 | |
| 870200075025 | 75x2½" | 192 | 156 | 132 | 16 | 0,752 | |
| 870200075030 | 75x3" | 196 | 156 | 132 | 10 | 0,747 | |
| 870200090020 | 90x2" | 226 | 169 | 152 | 16 | 1,142 | |
| 870200090025 | 90x2½" | 229 | 169 | 152 | 16 | 1,142 | |
| 870200090030 | 90x3" | 232 | 169 | 152 | 10 | 1,133 | |
| 870200090040 | 90x4" | 238 | 169 | 152 | 10 | 1,133 | |
| 870200110020 | 110x2" | 263 | 215 | 181 | 16 | 1,929 | |
| 870200110030 | 110x3" | 259 | 215 | 181 | 10 | 1,929 | |
| 870200110040 | 110x4" | 267 | 215 | 181 | 10 | 1,940 | |
