TABELLA DIMENSIONI

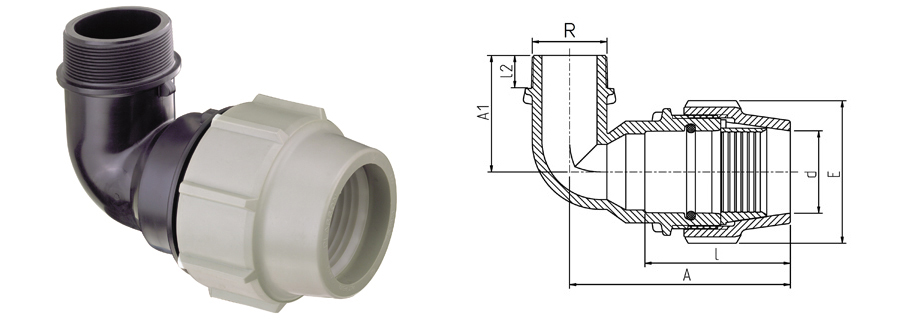

| Prodotto | dxR | A | A1 | E | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 078500020005 | 20x½" | 74 | 41 | 48 | 16 | 0,067 |  |
| 078500020007 | 20x¾" | 76 | 43 | 48 | 16 | 0,064 | |
| 078500025005 | 25x½" | 85 | 47 | 54 | 16 | 0,073 | |
| 078500025007 | 25x¾" | 89 | 48 | 54 | 16 | 0,080 | |
| 078500025010 | 25x1" | 89 | 54 | 54 | 16 | 0,090 | |
| 078500032010 | 32x1" | 103 | 55 | 64 | 16 | 0,128 | |
| 078500040010 | 40x1" | 123 | 60 | 82 | 16 | 0,240 | |
| 078500040013 | 40x1¼" | 123 | 66 | 82 | 16 | 0,233 | |
| 078500040015 | 40x1½" | 123 | 66 | 82 | 16 | 0,241 | |
| 078500050010 | 50x1" | 140 | 71 | 96 | 16 | 0,290 | |
| 078500050013 | 50x1¼" | 144 | 74 | 96 | 16 | 0,334 | |
| 078500050015 | 50x1½" | 144 | 74 | 96 | 16 | 0,331 | |
| 078500050020 | 50x2" | 140 | 76 | 96 | 16 | 0,369 | |
| 078500063013 | 63x1¼" | 168 | 76 | 113 | 16 | 0,451 | |
| 078500063015 | 63x1½" | 168 | 76 | 113 | 16 | 0,515 | |
| 078500063020 | 63x2" | 170 | 92 | 113 | 16 | 0,518 | |
| 878500075025 | 75x2½" | 207 | 105 | 132 | 16 | 0,886 | |
| 878500075030 | 75x3" | 207 | 110 | 132 | 10 | 0,934 | |
| 878500090030 | 90x3" | 232 | 110 | 152 | 10 | 1,380 | |
| 878500110040 | 110x4" | 276 | 140 | 181 | 10 | 2,359 | |
