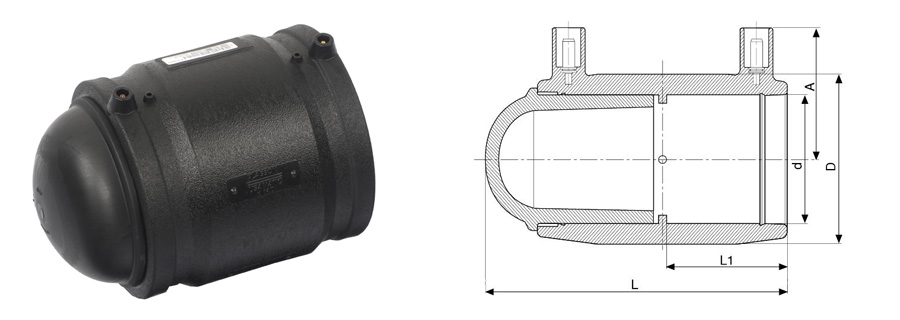

TABELLA DIMENSIONI
| Prodotto | d | L | D | SDR | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 491204020 | 20 | 84 | 31 | 7,4÷11 | 16 | 0,055 |  |
| 491204025 | 25 | 92 | 36 | 7,4÷11 | 16 | 0,050 | |
| 491204032 | 32 | 103 | 44 | 7,4÷11 | 16 | 0,076 | |
| 491204040 | 40 | 114 | 56 | 7,4÷11 | 16 | 0,130 | |
| 491204050 | 50 | 121 | 67 | 7,4÷11 | 16 | 0,204 | |
| 491204063 | 63 | 142 | 82 | 7,4÷17 | 16 | 0,327 | |
| 491204075 | 75 | 156 | 98 | 7,4÷17 | 16 | 0,499 | |
| 491204090 | 90 | 183 | 117 | 7,4÷17 | 16 | 0,820 | |
| 491204110 | 110 | 206 | 140 | 7,4÷17 | 16 | 1,259 | |
| 491204125 | 125 | 222 | 157 | 7,4÷17 | 16 | 1,702 | |
| 491204140 | 140 | 237 | 174 | 7,4÷17 | 16 | 2,346 | |
| 491204160 | 160 | 261 | 194 | 7,4÷17 | 16 | 2,990 | |
| 491204180 | 180 | 283 | 218 | 7,4÷17 | 16 | 4,159 | |
| 491204200 | 200 | 289 | 242 | 7,4÷17 | 16 | 5,260 | |
| 491204225 | 225 | 318 | 272 | 7,4÷17 | 16 | 7,260 | |
| 491204250 | 250 | 344 | 311 | 7,4÷17 | 16 | 8,381 | |
| 491204280 | 280 | 396 | 340 | 7,4÷17 | 16 | 11,740 | |
| 491204315 | 315 | 405 | 387 | 7,4÷26 | 16 | 16,040 | |
