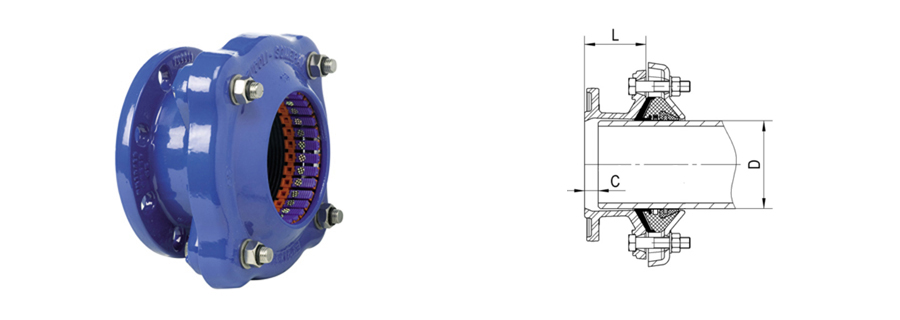

TABELLA DIMENSIONI
| Prodotto | Dmin-Dmax | DN | L | L1 min-max | MOP | PN | peso (kg) |
|---|---|---|---|---|---|---|---|
| FS29500052N | 39÷52 | 50 | 85 | 129-138 | 5 | 10-16 | 4,100 |
| FS29500064N | 49÷64 | 50 | 85 | 128-138 | 5 | 10-16 | 4,200 |
| FS29500083N | 63÷83 | 60-65 | 85 | 129-143 | 5 | 10-16 | 7,600 |
| FS29500103N | 78÷103 | 80 | 85 | 125-143 | 5 | 10-16 | 8,400 |
| FS29500117N | 87÷117 | 80-100 | 85 | 121-143 | 5 | 10-16 | 9,200 |
| FS29500130N | 100÷130 | 100 | 90 | 127-150 | 5 | 10-16 | 10,000 |
| FS29500147N | 117÷147 | 125 | 90 | 127-150 | 5 | 10-16 | 11,600 |
| FS29500182N | 152÷182 | 150 | 110 | 147-168 | 5 | 10-16 | 14,000 |
| FS29500200DN | 245÷285 | 200 | 210 | 251-280 | 5 | 10-16 | 30,500 |
| FS29500228N | 198÷228 | 200 | 110 | 147-168 | 5 | 10-16 | 18,000 |
| FS29500285N | 245÷285 | 250 | 150 | 191-220 | 5 | 10-16 | 27,800 |
| FS29500300DN | 340÷380 | 300 | 230 | 271-300 | 5 | 10-16 | 48,500 |
| FS29500340N | 300÷340 | 300 | 150 | 191-220 | 5 | 10-16 | 34,300 |
| FS29500380N | 340÷380 | 350 | 150 | 191-220 | 5 | 10-16 | 41,200 |
| FS29500430N | 390÷430 | 400 | 150 | 191-220 | 5 | 16 | 52,800 |
