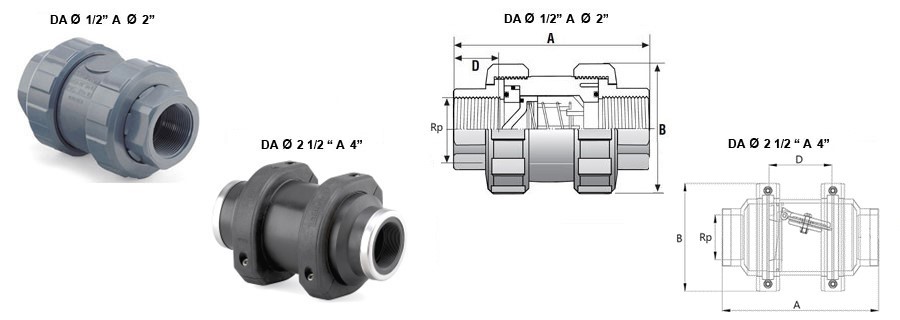

TABELLA DIMENSIONI
| Prodotto | Rp | DN | A | B | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 651781005 | ½" | 15 | 88 | 52 | 16 | 0,139 | |
| 651781007 | ¾" | 20 | 97 | 58 | 16 | 0,181 |  |
| 651781010 | 1" | 25 | 122 | 69 | 16 | 0,296 | |
| 651781013 | 1¼" | 32 | 134 | 85 | 16 | 0,497 | |
| 651781015 | 1½" | 40 | 153 | 99 | 16 | 0,712 | |
| 651781020 | 2" | 50 | 169 | 120 | 16 | 1,125 | |
| 651781025 | 2½" | 65 | 294 | 203 | 10 | 3,050 | |
| 651781030 | 3" | 80 | 294 | 203 | 10 | 2,990 | |
| 651781040 | 4" | 100 | 294 | 203 | 10 | 3,185 |
