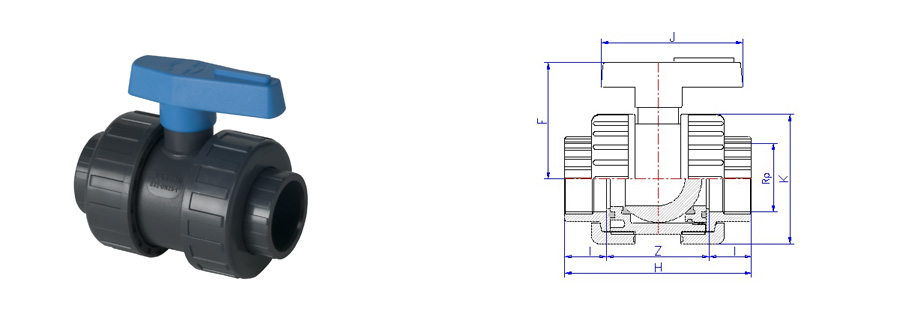

TABELLA DIMENSIONI
| Prodotto | Rp | DN | H | J | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 1141003 | 3/8" | 10 | 71 | 65 | 16 | 0,095 |  |
| 1141005 | ½" | 15 | 75 | 65 | 16 | 0,105 | |
| 1141007 | ¾" | 20 | 89 | 73 | 16 | 0,204 | |
| 1141010 | 1" | 25 | 102 | 78 | 16 | 0,284 | |
| 1141013 | 1¼" | 32 | 120 | 96 | 16 | 0,479 | |
| 1141015 | 1½" | 40 | 142 | 110 | 16 | 0,681 | |
| 1141020 | 2" | 50 | 169 | 129 | 16 | 1,439 | |
| 1121025 | 2½" | 65 | 215 | 132 | 10 | 2,000 | |
| 1121030 | 3" | 80 | 250 | 153 | 10 | 3,250 | |
| 1121040 | 4" | 100 | 295 | 185 | 10 | 6,300 | |
