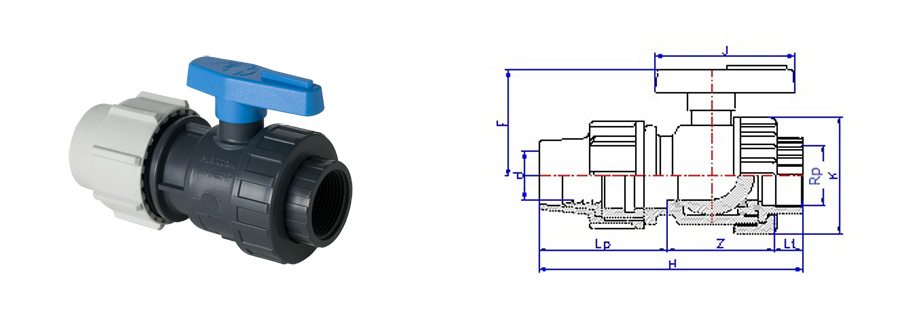

TABELLA DIMENSIONI
| Prodotto | dxRp | DN | H | J | PN | peso (kg) | DWG |
|---|---|---|---|---|---|---|---|
| 1379052 | 20x½" | 15 | 112 | 65 | 16 | 0,128 |  |
| 1379075 | 25x¾" | 20 | 124 | 73 | 16 | 0,212 | |
| 1379103 | 32x1" | 25 | 137 | 78 | 16 | 0,308 | |
| 1379184 | 40x1¼" | 40 | 194 | 110 | 16 | 0,531 | |
| 1379155 | 50x1½" | 32 | 174 | 96 | 16 | 0,844 | |
| 1379206 | 63x2" | 50 | 230 | 129 | 16 | 1,463 | |
